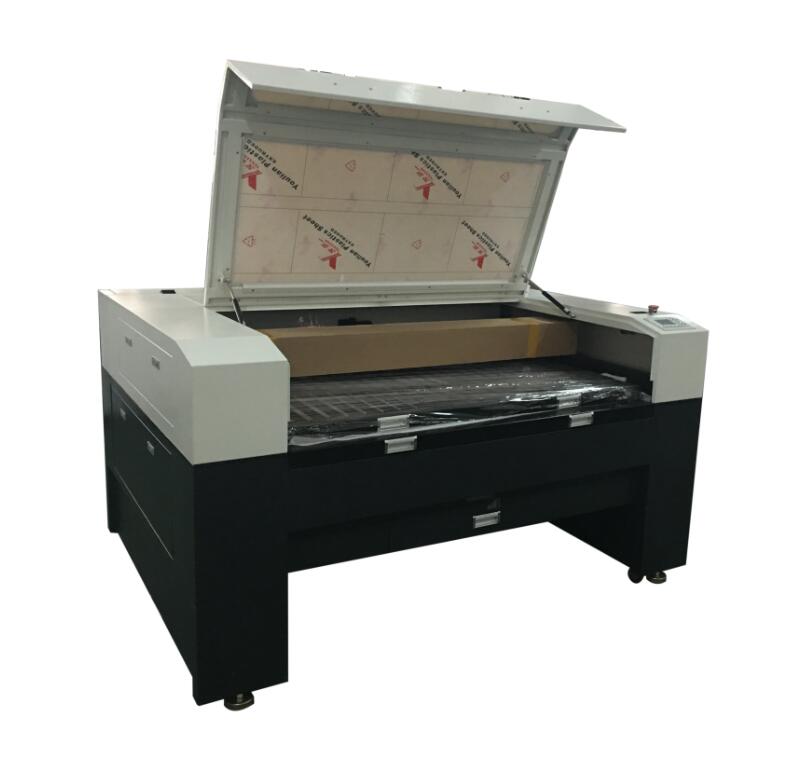

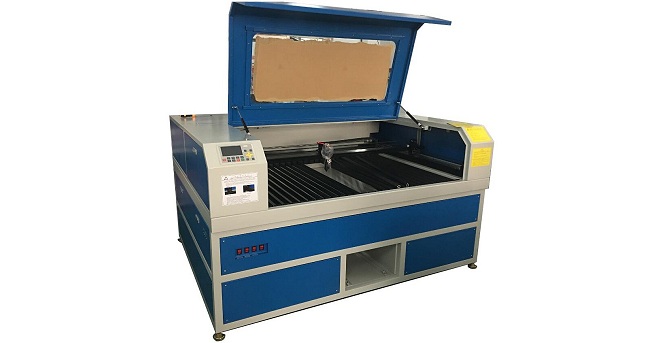

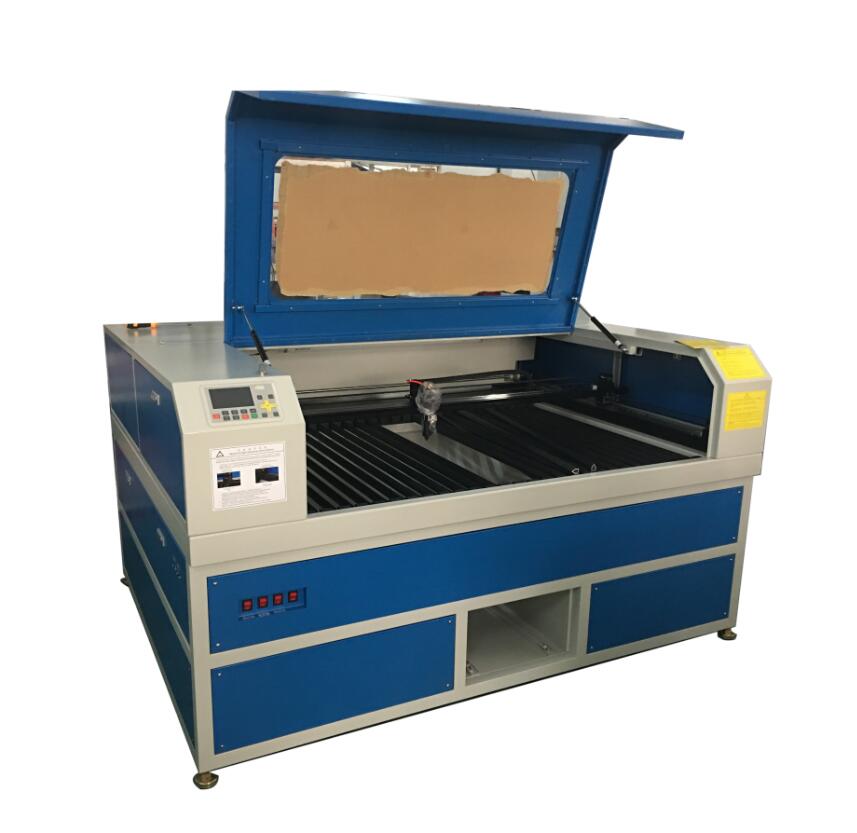

Laser Cutting & Engraving Machine 1390
Model: MCL-1390
Packing: wood
Warranty: 1year
Certificate: CE
Brief introduction:
LT1390 laser engraving and cutting machine is used specially for the nonmetal art crafts, gifts
and the engraving of bamboo products. The mechanical structure is strong and stable,
making the machine to run at high precision. The electrical ability is stable,
the engraving speed is high, and the precision is high.
The machine can engrave beautiful pictures, peoples’ photos on the surface
of many materials of different size of materials (marble, black or colored acrylic etc).
It can also engrave many signs, marks.
It is a machine with high cost performance.

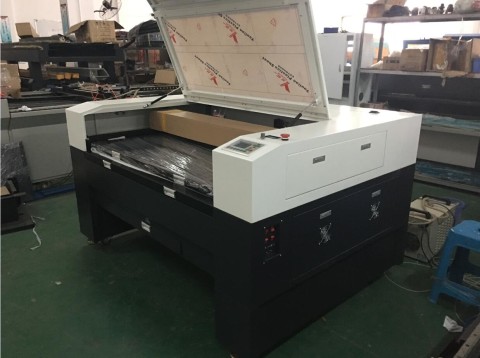

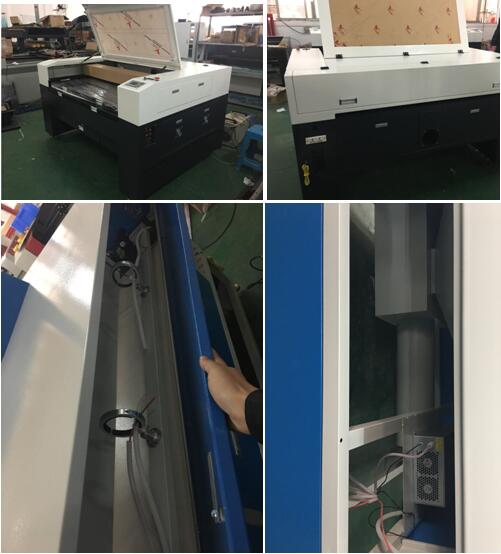

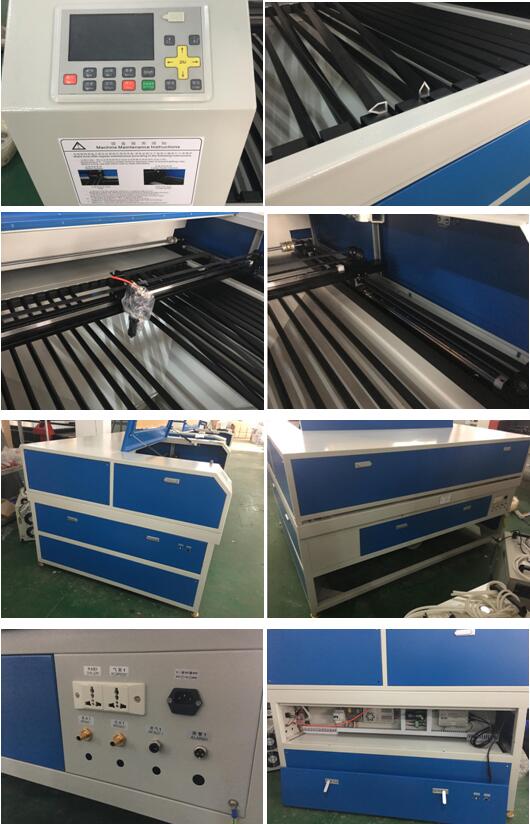

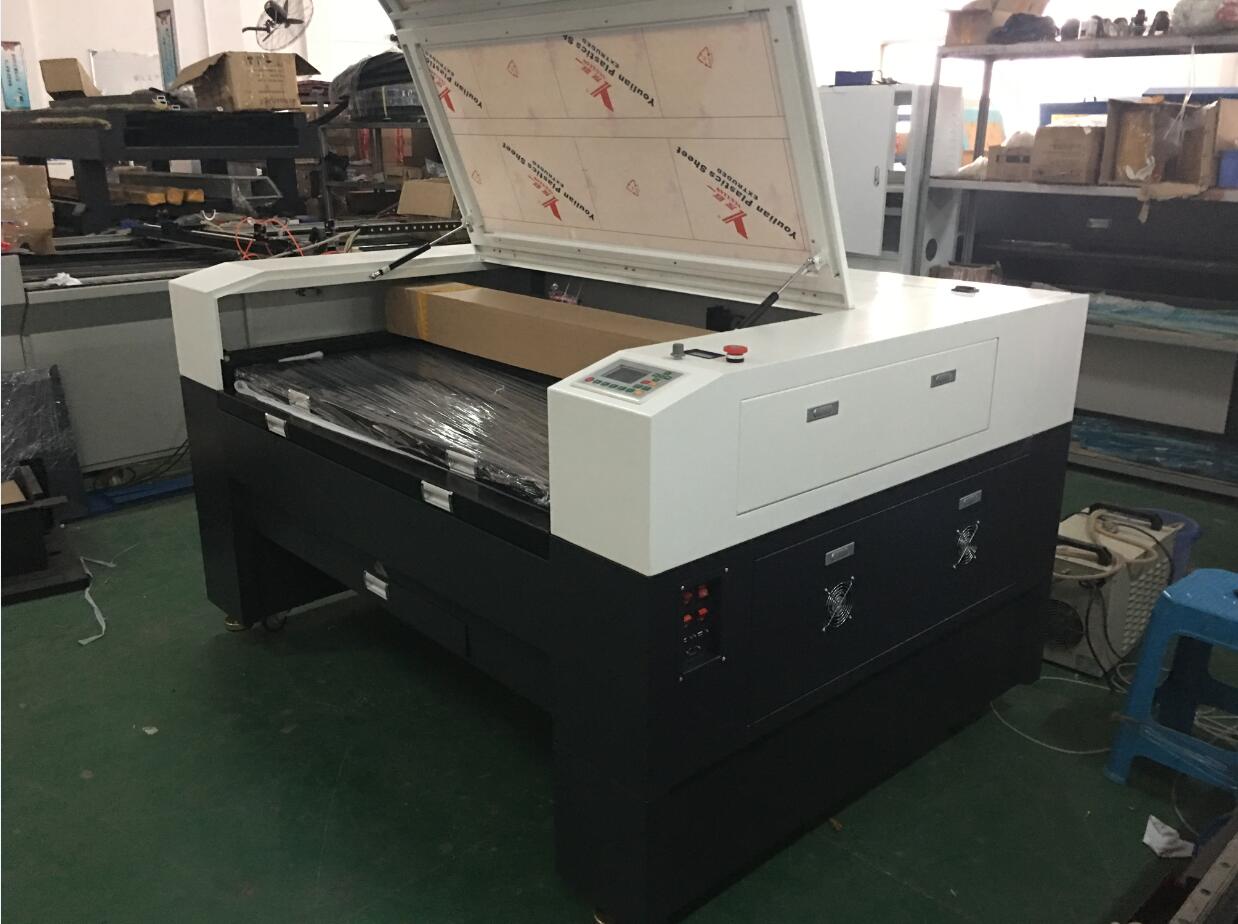

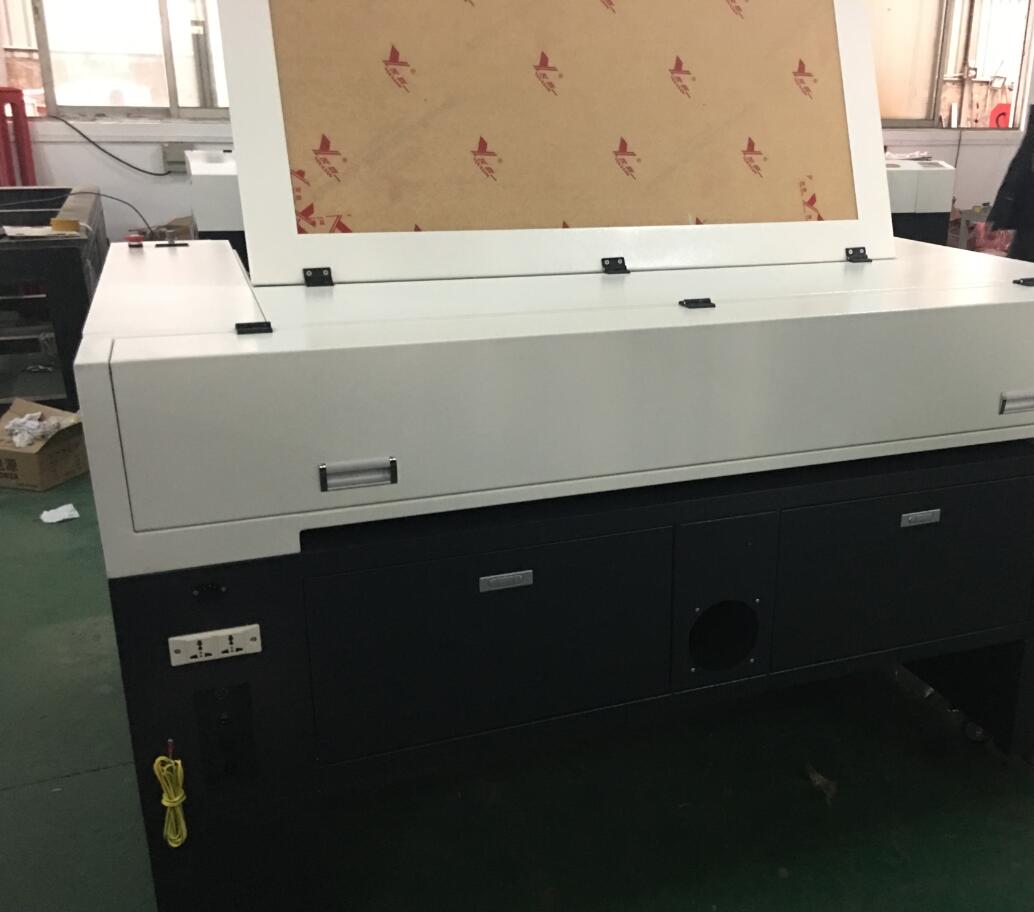

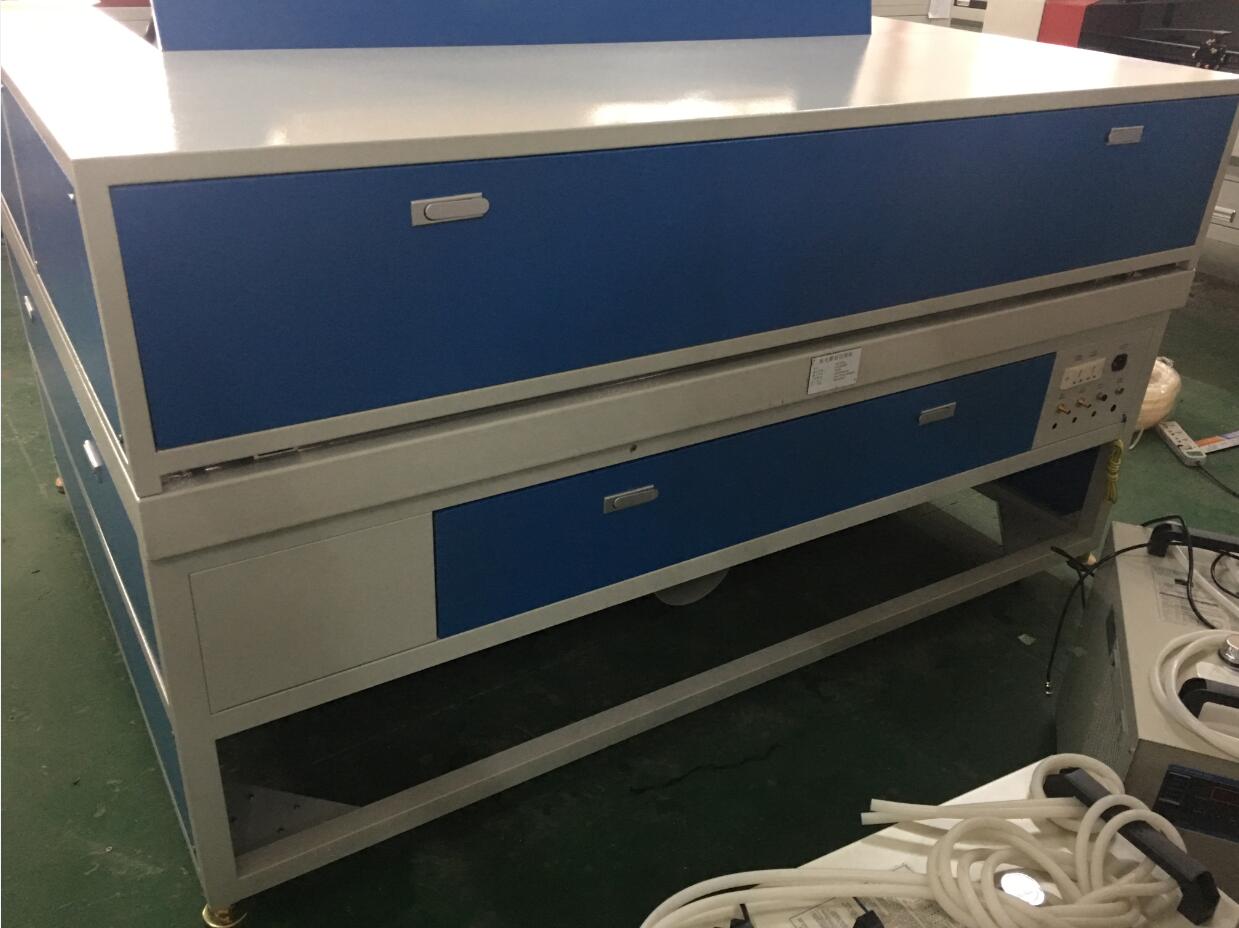

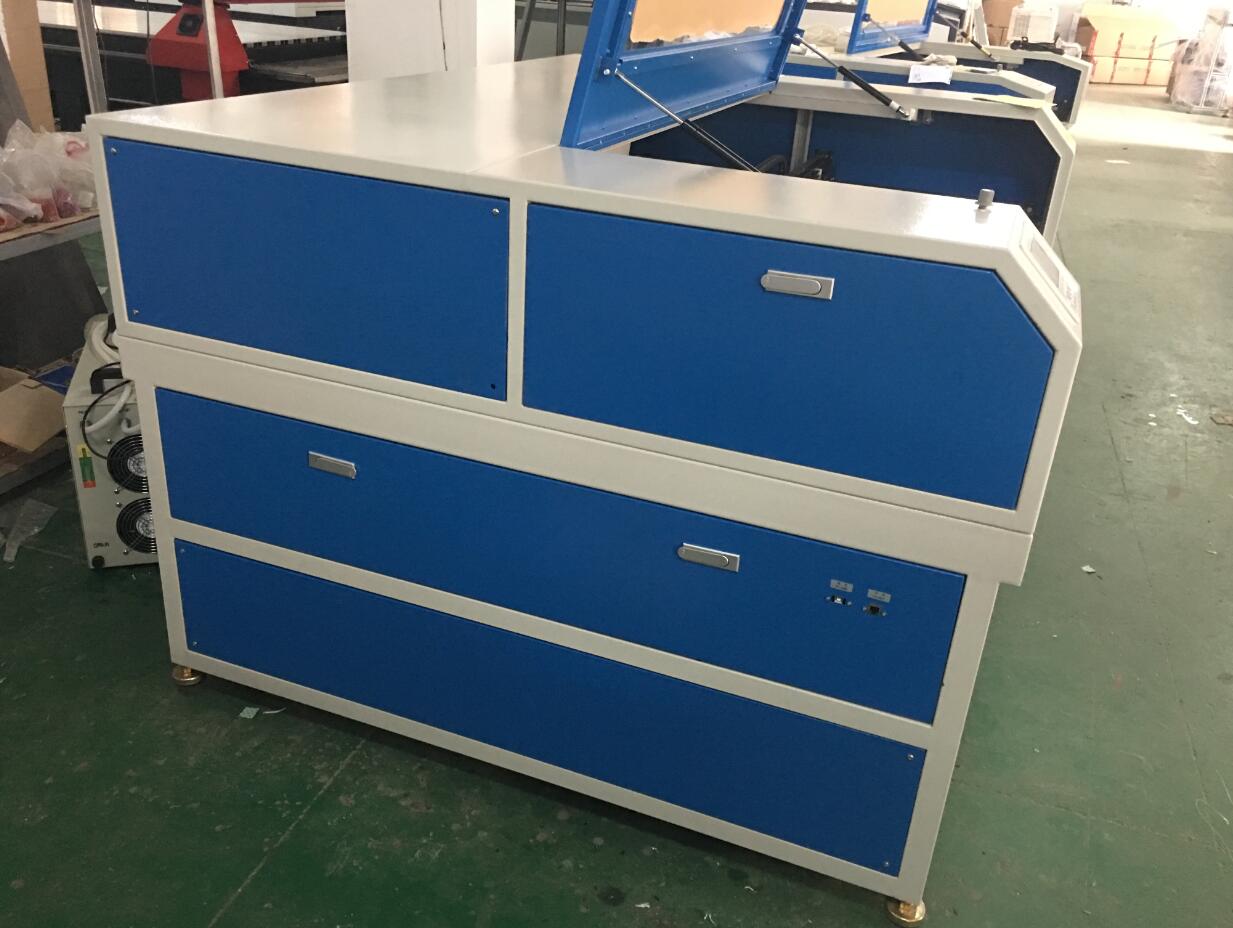

Machine Details:
Specifications:
| Name: | CO2 Laser Cutting Machine |
| Processing area | 1300mm*900mm (4feet*3feet) |
| Laser power | 100/130/150W |
| Laser type: | Sealed Co2 glass laser tube |
| Cooling mode: | Water cooling and protection system |
| Resetting positioning accuracy: | ±0.01mm |
| Compatible Software: | Laser cut 5.3, CorelDraw AutoCAD Photoshop |
| Whole machine size: | 1950mm*1500mm*1300mm |
| Engraving speed | 1-1000/s |
| Cutting speed | 1-200mm/s |
| Cutting thickness | 0-35mm acrylic (others determined by materials) |
| Resolution ratio | ≤0.0125mm |
| Interface: | USB |
| Minimum shaping character | letter 0.5mm, Chinese 0.5mm |
| Support graphic format | DST, PLT, BMP, DXF |
| Gross power | 1000W |
| Driving mode: | DC0.8A 24V stepper motor |
| Cooling mode: | Circulation water cooling |
| Working voltage: | AC 110 – 220V±10%, 50 – 60Hz or depend on customer |
| Operating temperature | 0-45C |
| Operating humidity: | 5-95% |
| Driving system | stepper |
| Option: | Up and down table, rotary attachment |
| Packing: | wooden box |
| Guarantee time: | 1 year, laser tube 3 months |
| Net weight: | 190KGS before package, 240KGS after package |
Applicable materials:
Non-metal materials such as acrylic, double color board, Plexiglas,
Common glass, bamboo and wood, rubber, marble, granite and tiles, leather cloth etc.
Applicable industries:
Advertising industry, Billboards, artistic gifts, crystal ornaments, paper-cut, bamboo
and wooden product, garment and leather, embroidery, decoration and upholster industry.
Characteristics:
1) Japanese technical engine running, making sure the products to run at high aped and high precision.
2) The original binding beeline lead rail, the mechanic is running well and stable.
3) Channel feeding, the feeding can be unlimited.
4) The body of the machine adopts high quality aluminum, professional model and has the specification
of strong and not easy for distortion.
5) The main parts of the electrical line adopts the imported materials, the mainly controlled CMOS
Chip adopts double face CPU.
Samples:
Guarantee and after-sale service
- 12 months for machine, long life span of laser tube: 2000 hours.
- 24 hours technical support by e-mail, calling or door-to-door service
3 .English software, user manual.
- International quality certificate: CE, FDA, SGS, And ISO9001:2008
- Professional laser machine supplier with 8 years experiences in China
We offer training in our factory. Welcome to our factory. Sample provided
Machine spare parts and repair service is also provided by us
- Engineer is available going to your place for installing and training
