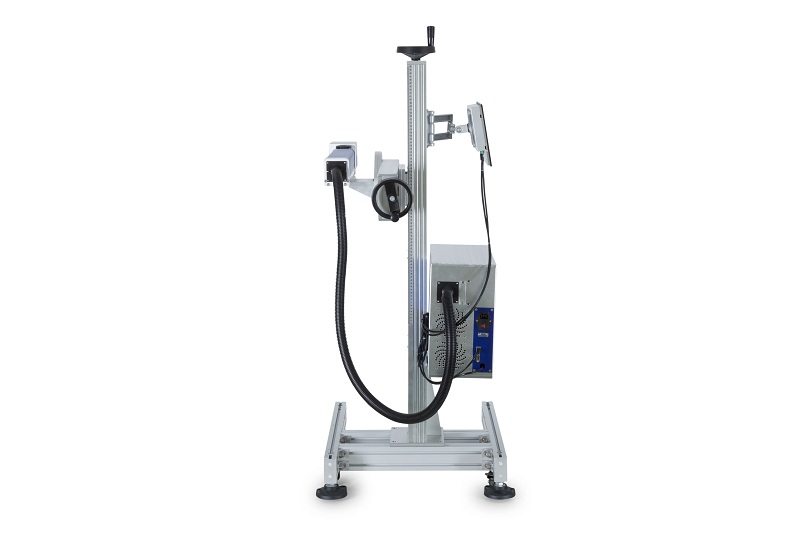

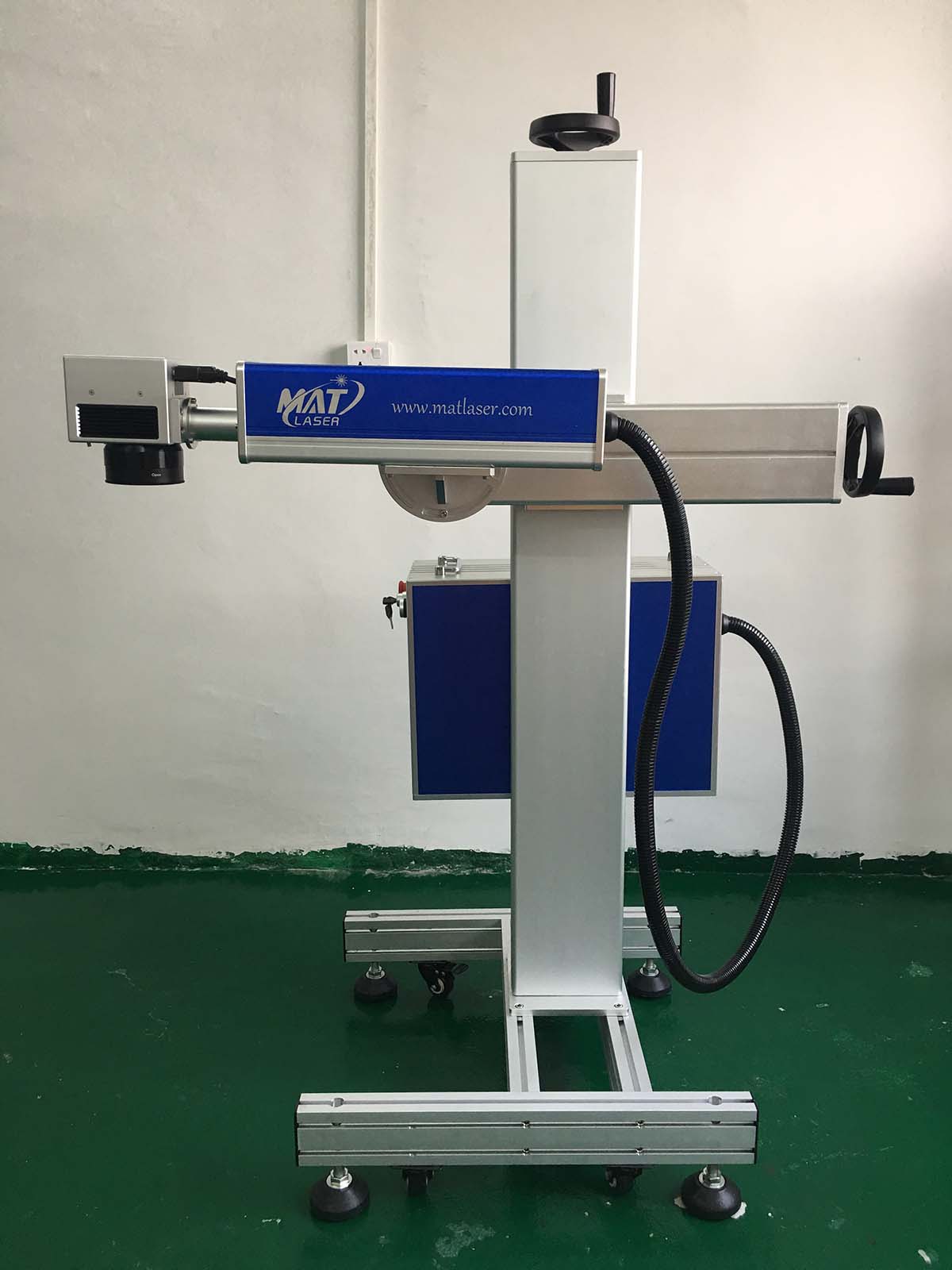

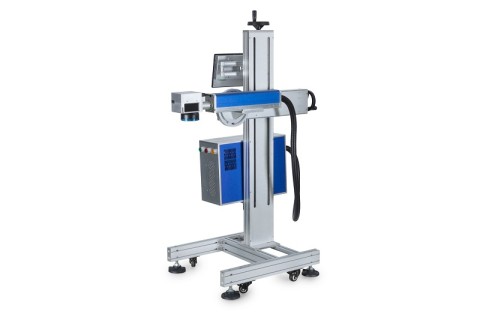

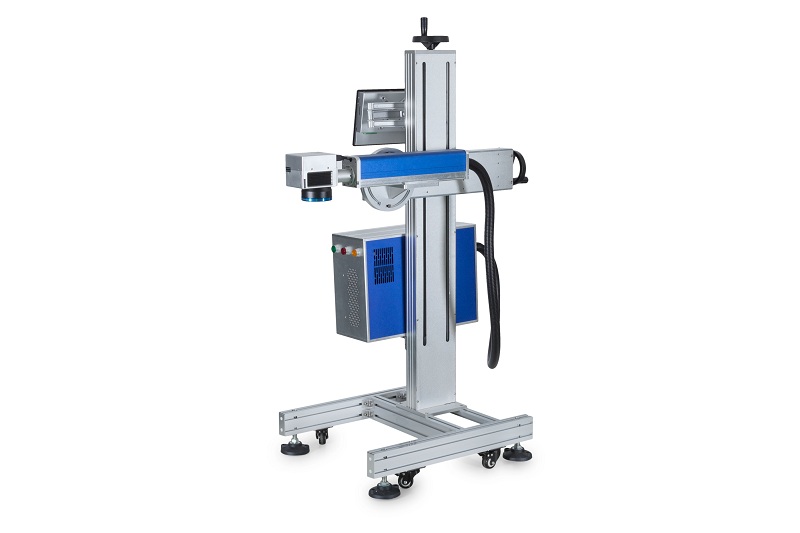

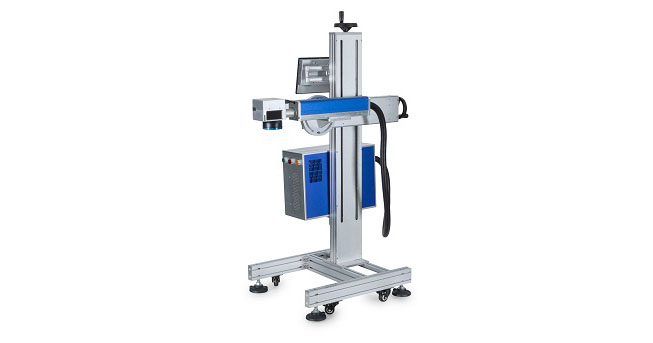

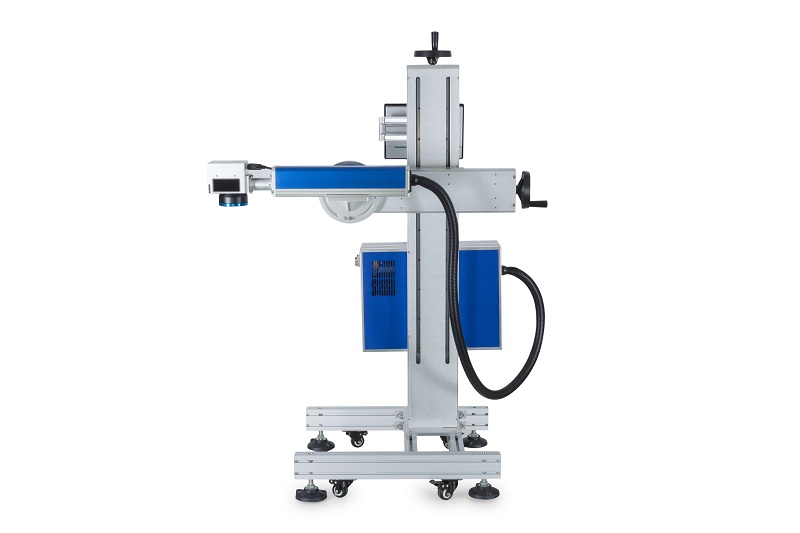

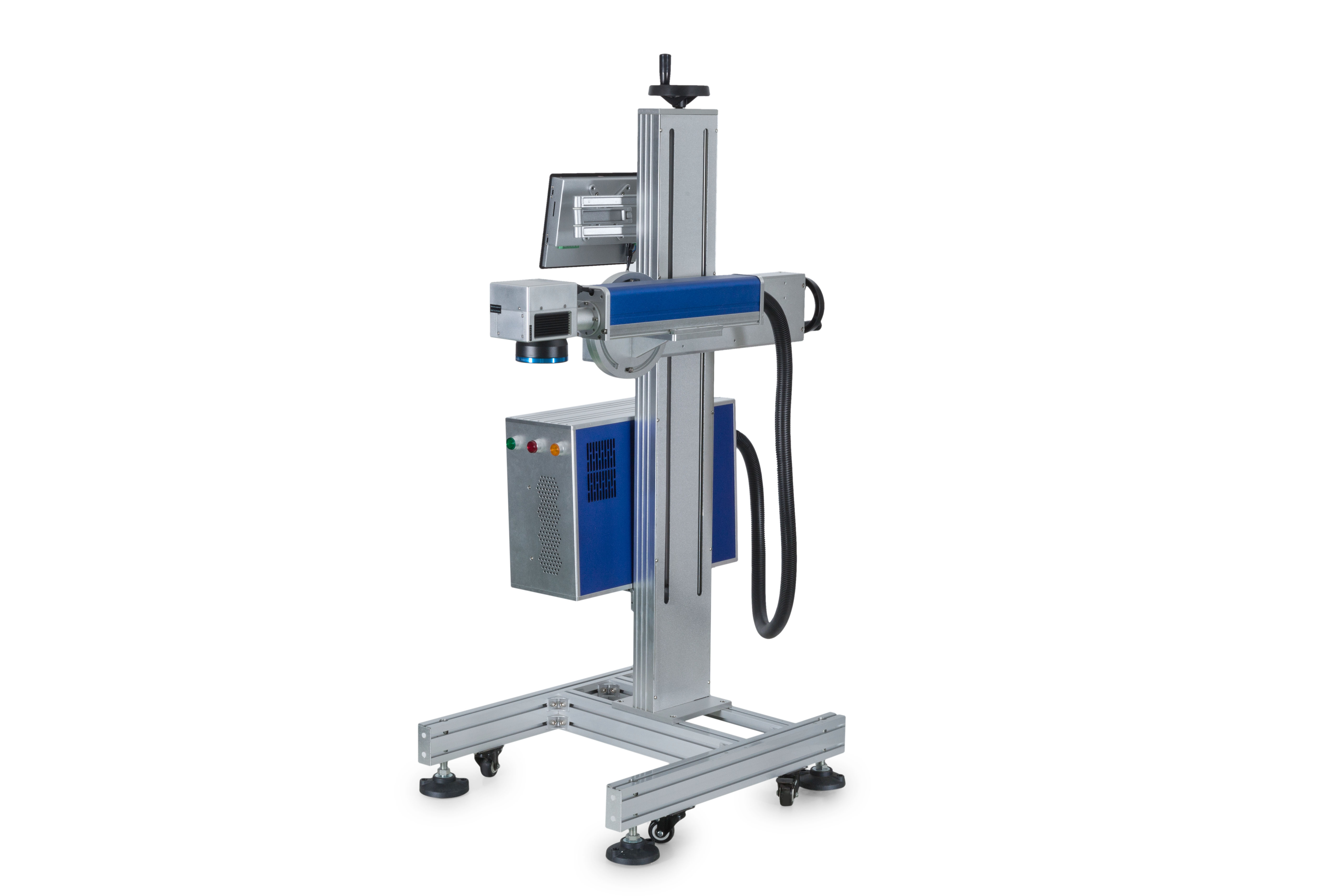

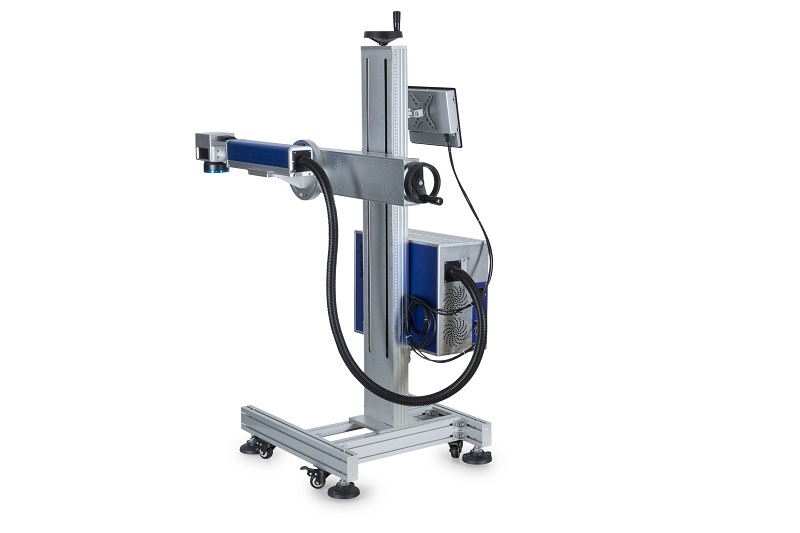

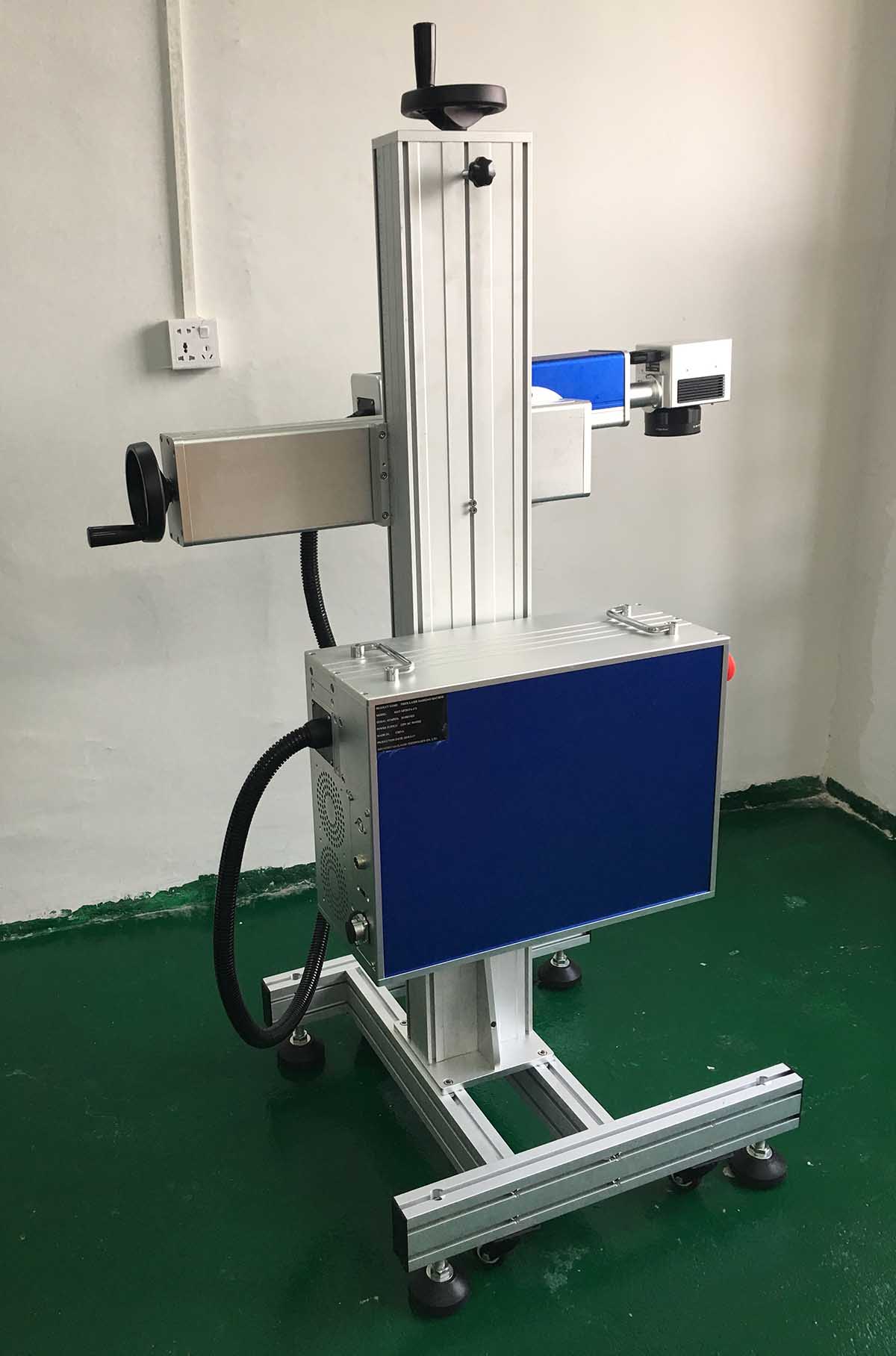

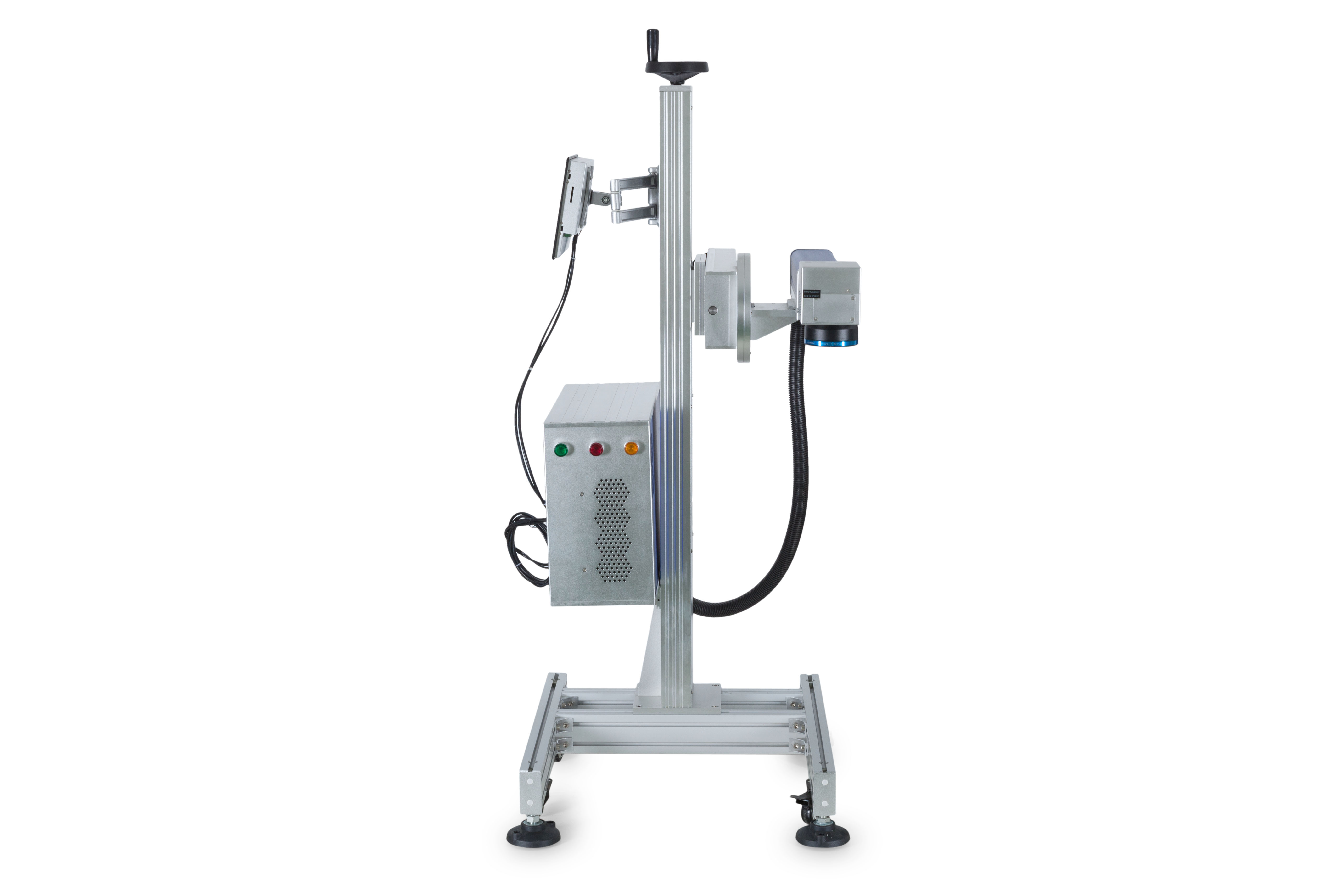

Flying – Convey Fiber Laser Marking Machine
Flying – Convey Fiber Laser Marking Machine
Fiber Laser Marking Machine is one of the most advanced fiber laser technology, numerical control technology, precision machinery technology of high-tech equipment
Product Description
Application industry:
widely used in integrated circuit chips,computer accessories, industrial bearings,clocks and watches, electronic and communication products,aerospace components,all kinds of auto parts, household appliances,hardware tools,dies,wire and cable,food packaging,jewelry, etc.
Application materials:
Iron、carboon steel, stainless steel, tungsten, aluminium, copper, silver, gold, alloy materials,electroplate materials,oxidizing materials and other metal materials, and plastics.
| Model | MAT-MF10-FA | MAT-MF20-FA | MAT-MF30-FA |
| Laser Power | 10W | 20W | 30W |
| Marking area | 110*110mm(70*70mm/175*175mm/220*220mm/ 300*300mm (Optional) | ||
| Wavelength | 1064nm | ||
| Beam quality | ＜1.8M2 | ||
| Marking speed | ＜8000mm/s | ||
| Min. character | 0.2mm | ||
| Repeat position accuracy | ±0.02mm | ||
| Min. line width | 0.05mm | ||
| Working environment | Temperature：5-40℃ Humidity：10-80% | ||
| Cooling method | Air cooling | ||
| Power supply | AC220V 50/60Hz | ||
| Total weight | 80KGS | ||
Product Features
1.Adopt high quality domestic fiber laser generator, good laser beam, very stable performance, 50,000 hours maintenanc-free, cost-effective.

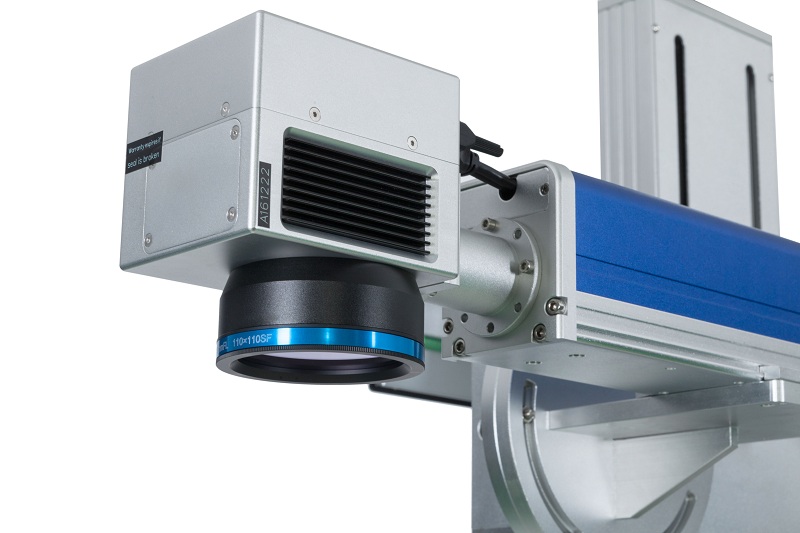

2.Totally colsed fiber laser optics system, more stable marking.

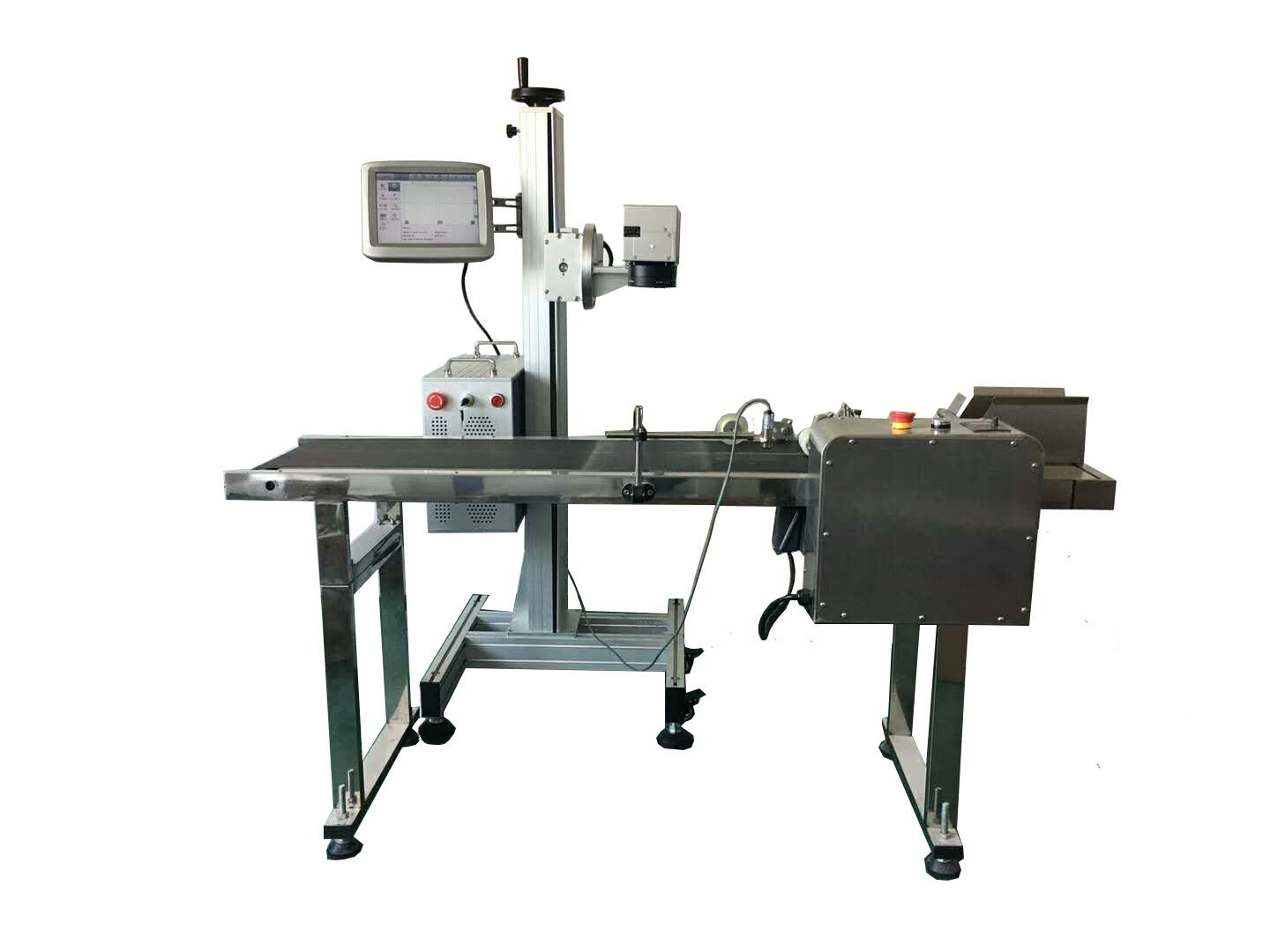

3.Equiped with conveyor realise fly laser making to increase production efficiency. For assembly line production, the laser head can be rotated 90 degree and mark side face on the workpieces.
4.With function of red-light pointer and preview. Easily locate marking position and save materials.
5.The marking software accept vector formate of plt,dxf,ai.
