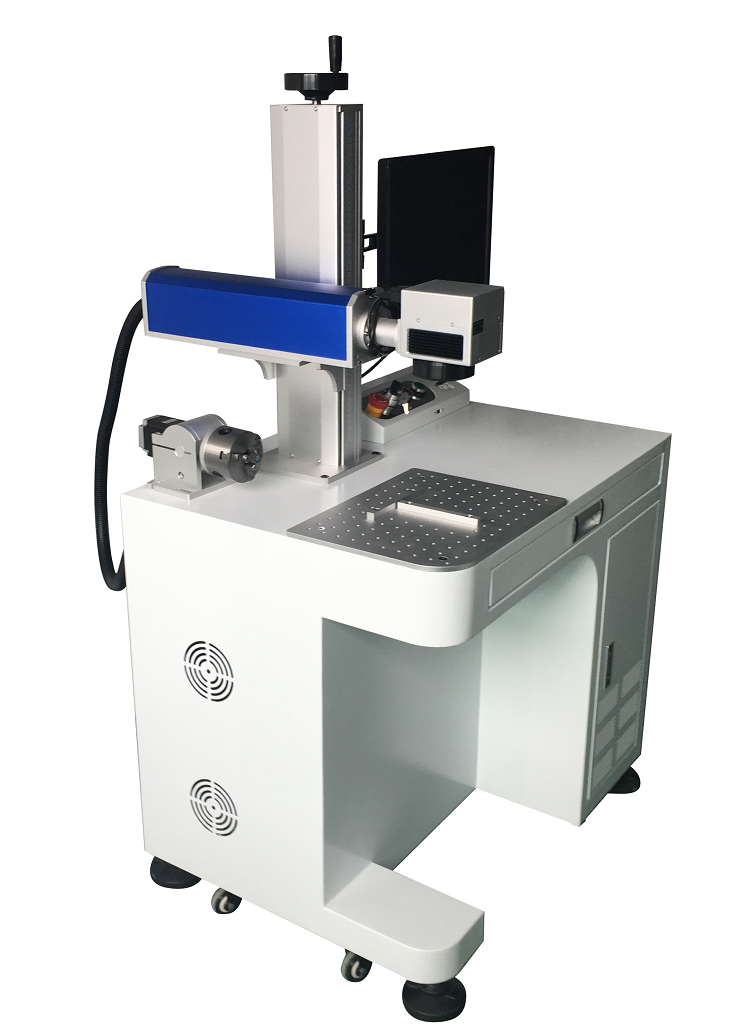

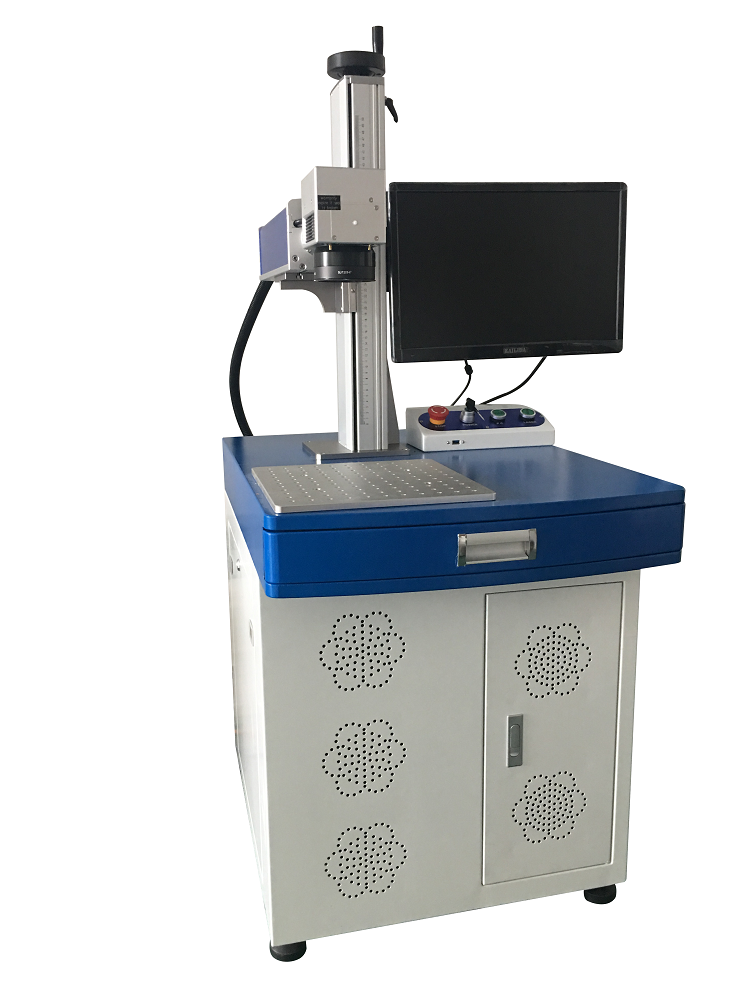

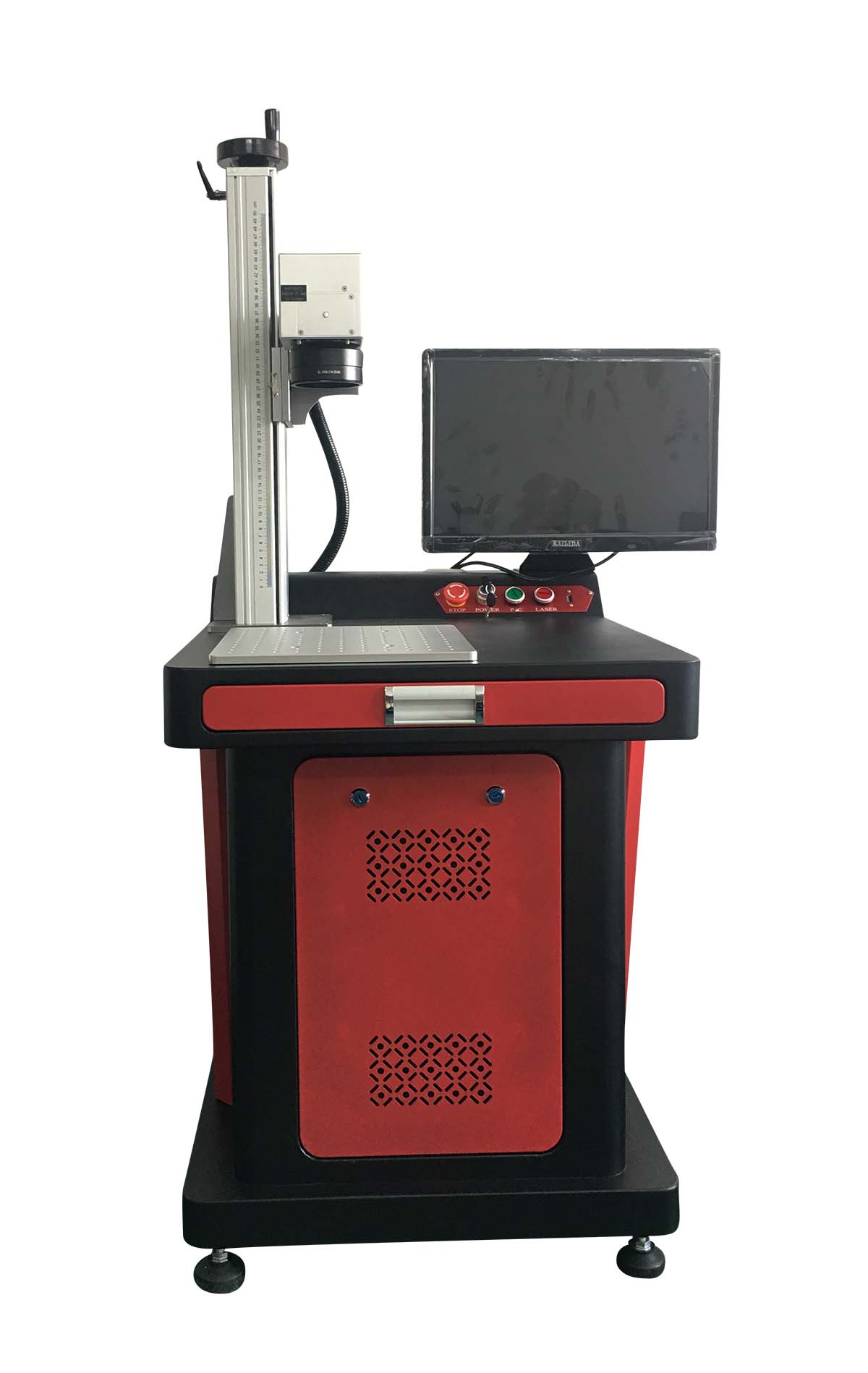

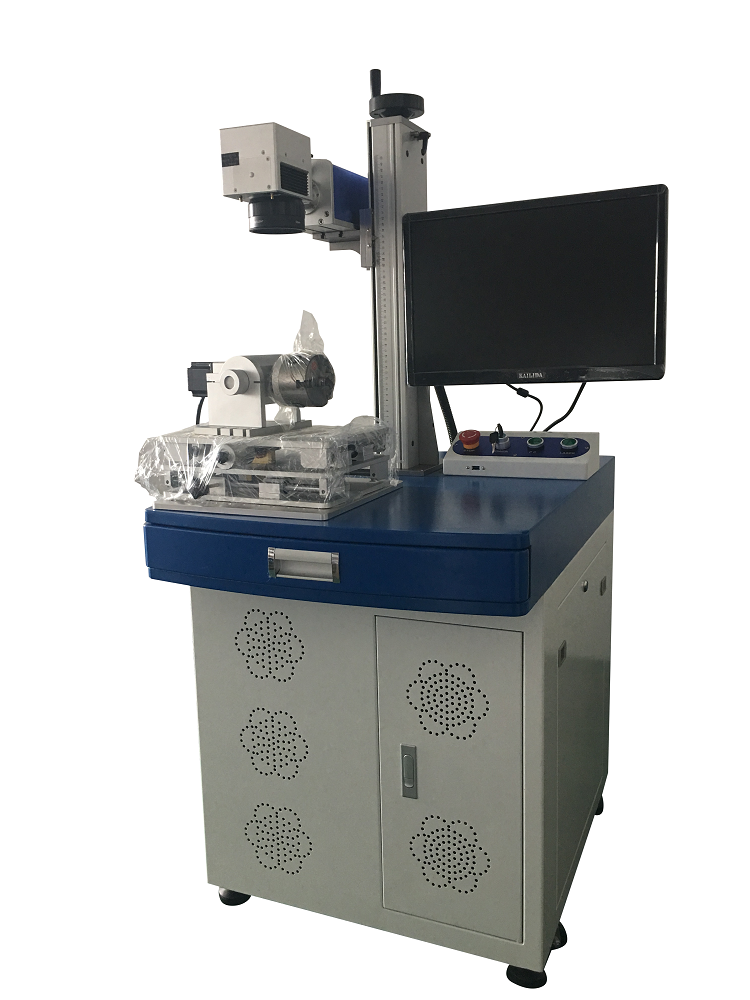

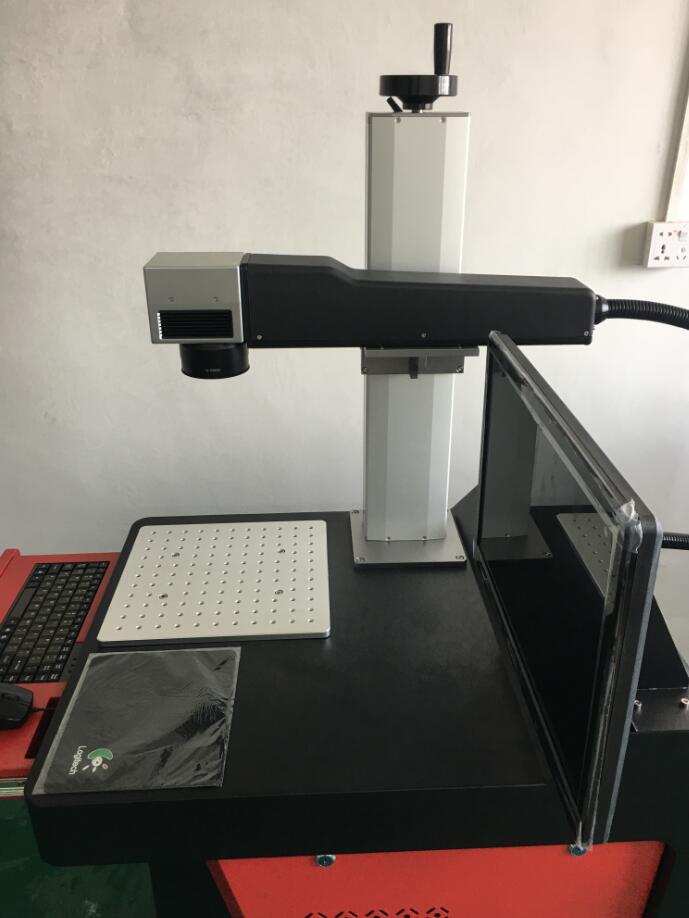

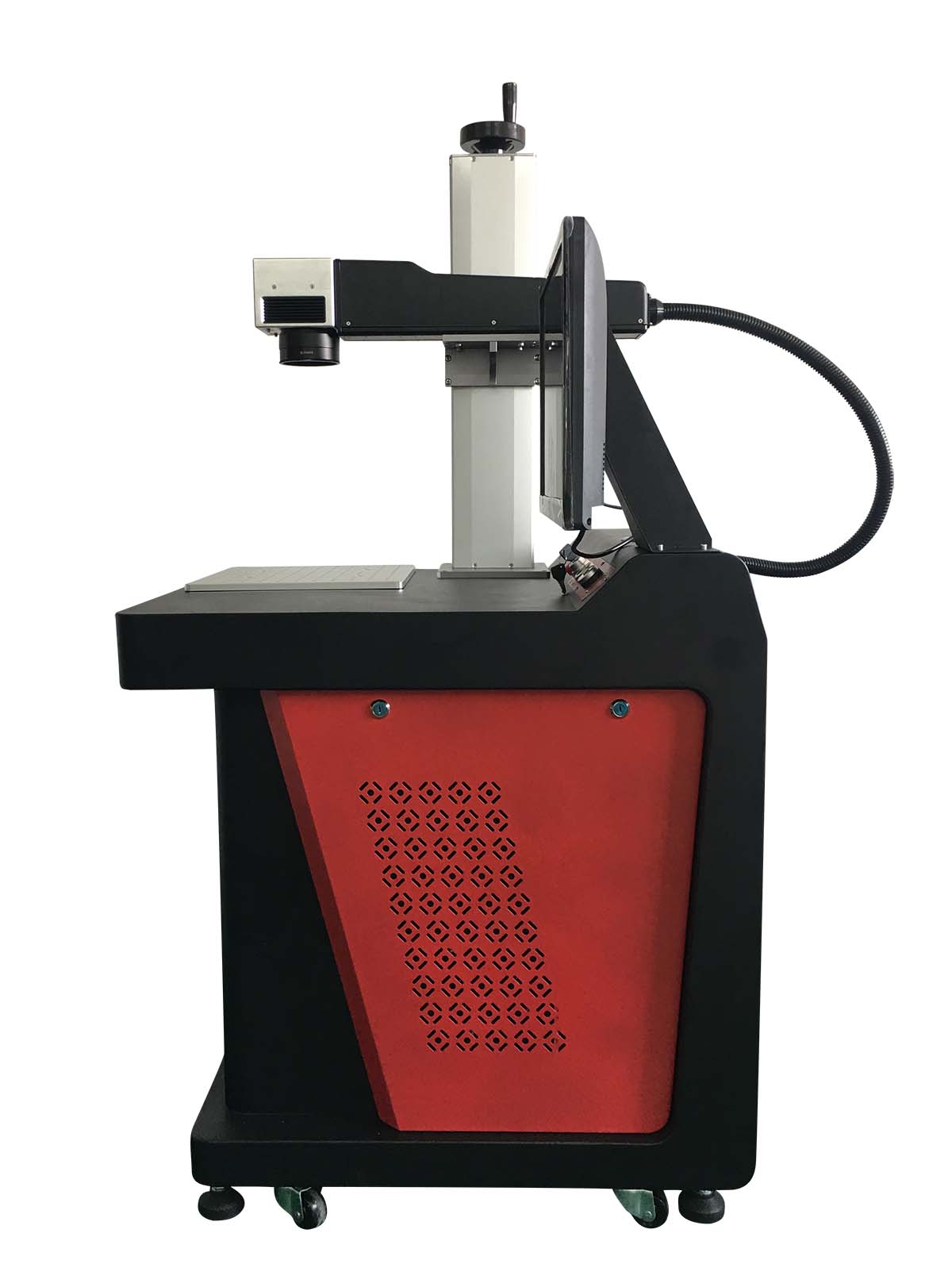

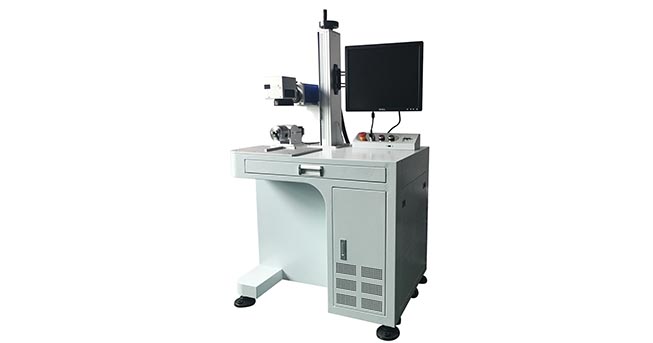

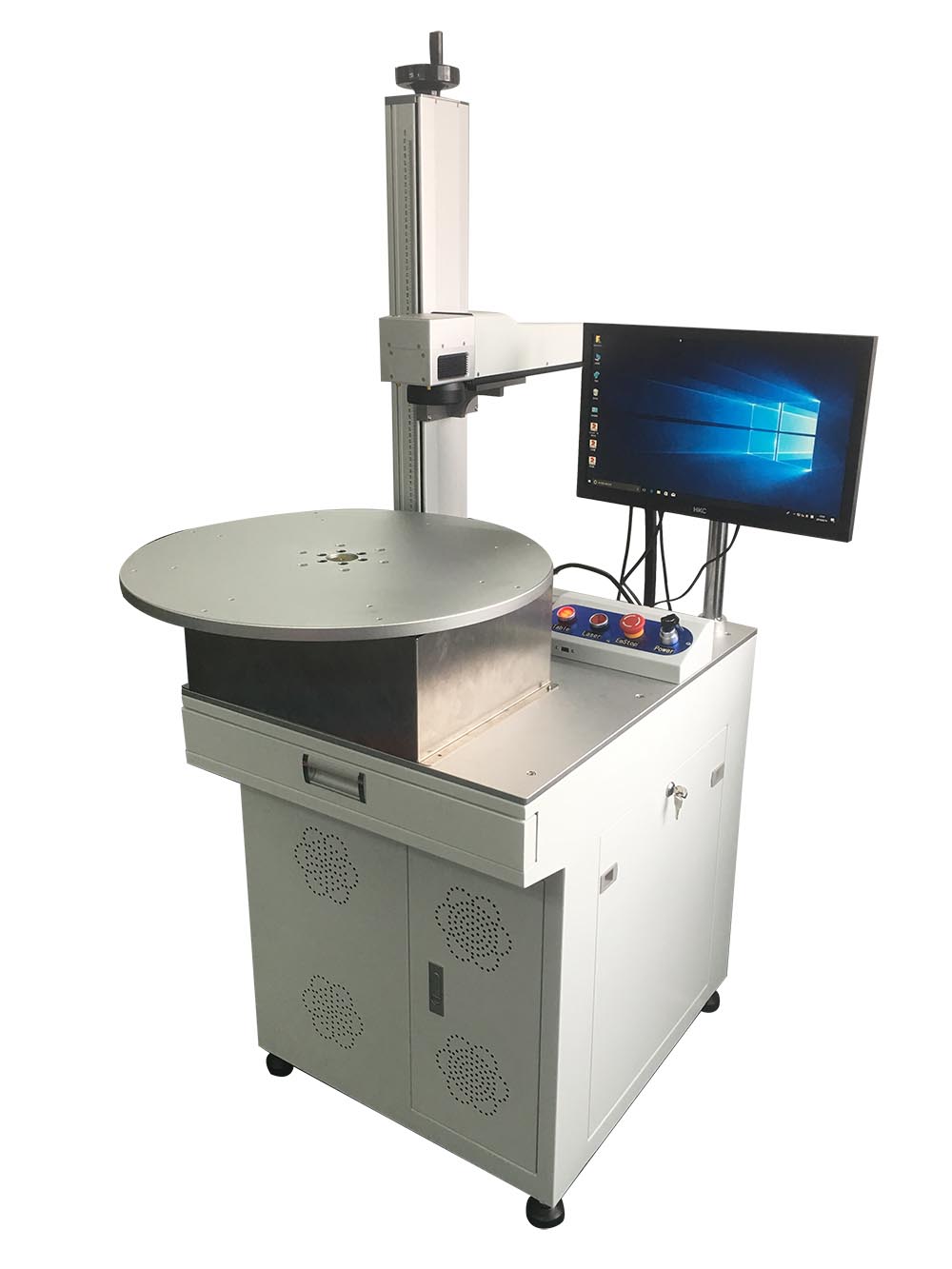

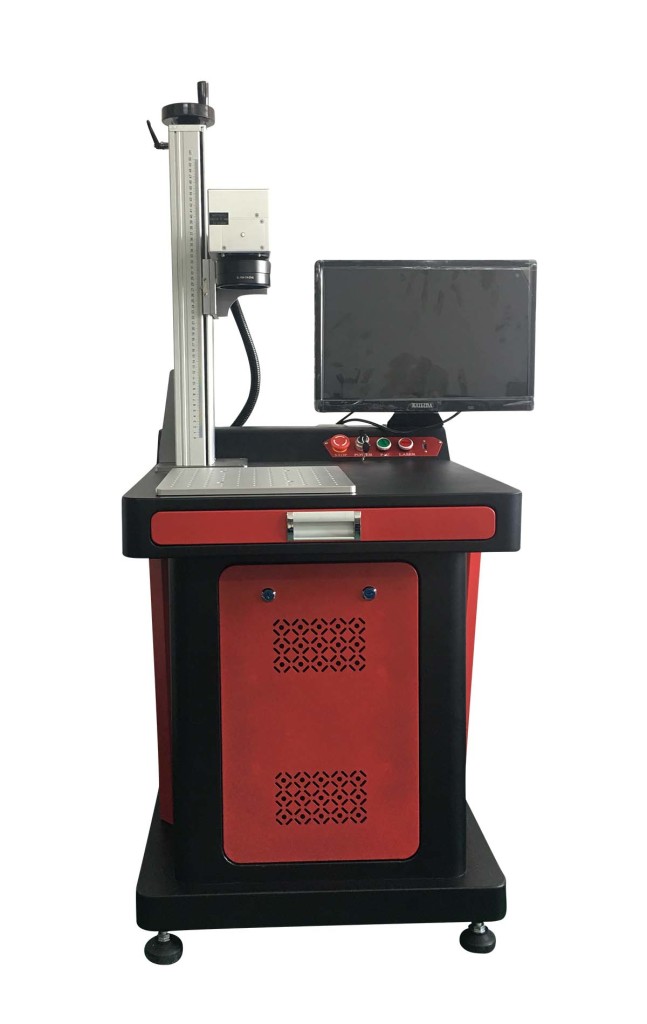

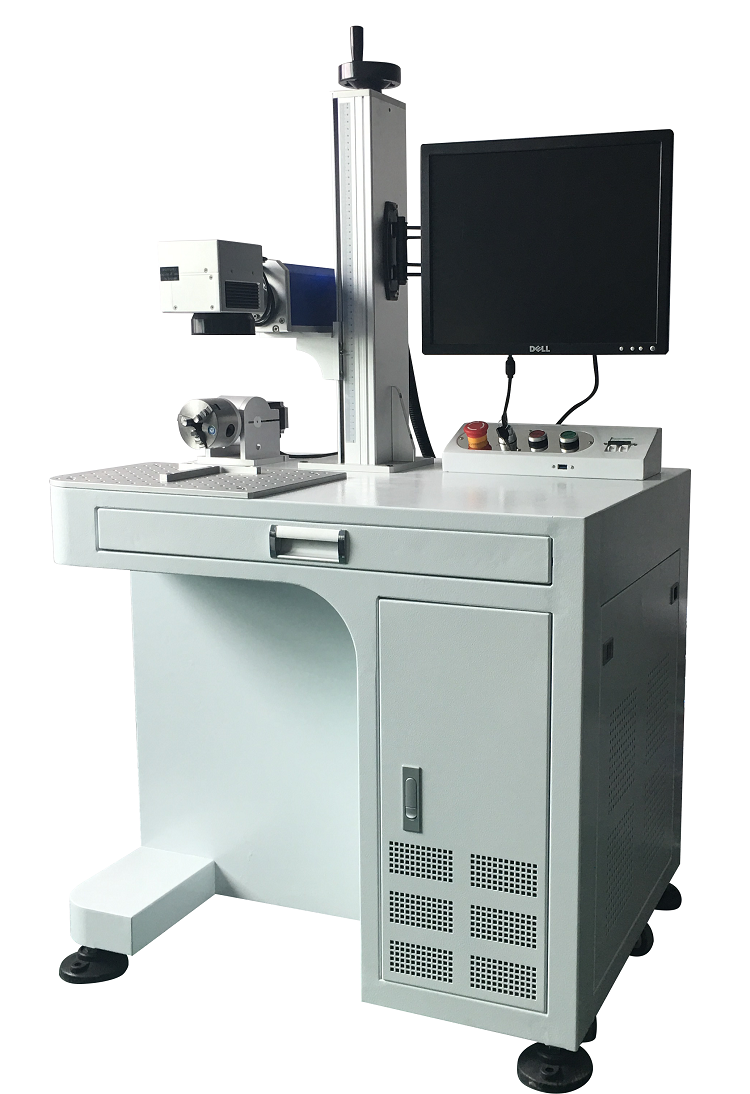

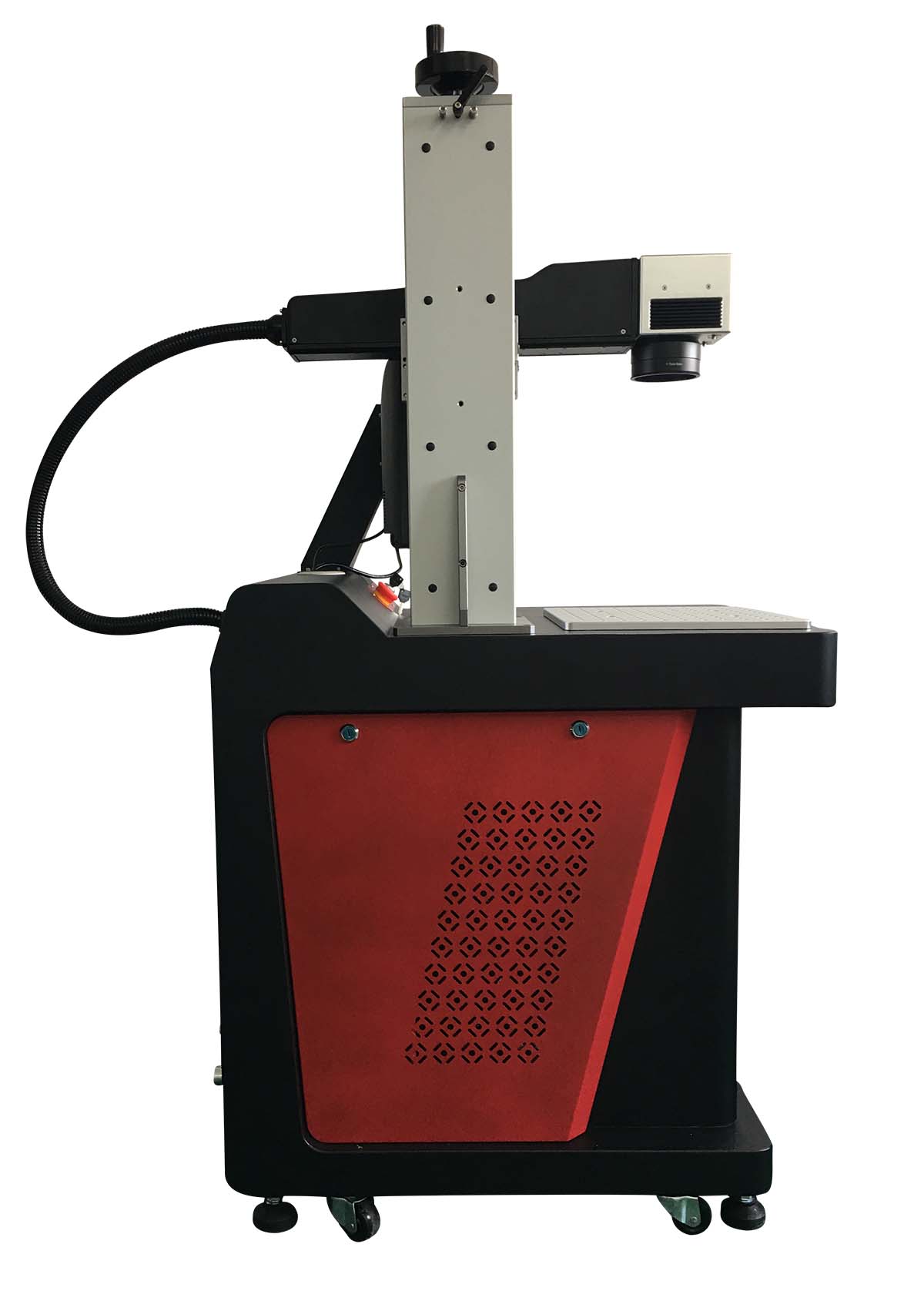

Fiber Laser Marking Machine
Fiber Laser Marking Machine
Fiber Laser Marking Machine is one of the most advanced fiber laser technology, numerical control technology, precision machinery technology of high-tech equipment
Product Description
Application industry:
widely used in integrated circuit chips,computer accessories, industrial bearings,clocks and watches, electronic and communication products,aerospace components,all kinds of auto parts, household appliances,hardware tools,dies,wire and cable,food packaging,jewelry, etc.
Application materials:
Iron、carboon steel, stainless steel, tungsten, aluminium, copper, silver, gold, alloy materials,electroplate materials,oxidizing materials and other metal materials, and plastics.
| Model | MAT-MF20-CA | MAT-MF30-CA | MAT-MF50-CA |
| Laser Power | 20W | 30W | 50W |
| Marking area | 110*110mm(70*70mm/175*175mm/220*220mm/ 300*300mm (Optional) | ||
| Wavelength | 1064nm | ||
| Beam quality | ＜1.8M2 | ||
| Marking speed | ＜8000mm/s | ||
| Min. character | 0.2mm | ||
| Repeat position accuracy | ±0.02mm | ||
| Min. line width | 0.05mm | ||
| Working environment | Temperature：5-40℃ Humidity：10-80% | ||
| Cooling method | Air cooling | ||
| Power supply | AC220V 50/60Hz | ||
| Total weight | 100KGS | ||
Product Features
1.Good quality laser beam which is near to the limit of diffraction, exporting TEM 00 fundamental transverse mode, M2 near to 1, divergence angle of laser beam is 0.3 mrad.
2.With high pulse repeat frequency, power export steadily, energy surge of single pulse is lower than 1%, so it can achieve high speed marking, and control the magnitude, depth and shape of laser spot well.
3.Fiber laser marking machine with high transition efficiency from electricity to light, 30%.
4.Fast marking speed, 2-3 times faster than the traditional marking machine.
5.Free from maintenance, long working life, small size, suitable for any working environment.
